24/6 office staples making and packaging machine

FOB Reference Price:Get Latest Price
$6,000.00 - $15,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SSS-WJ25
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
SSS
Condition:
New
Machine Type:
staple making machine
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High-accuracy
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Product name:
24/6 office staples making and packaging machine
Nominal pressure:
250KN
Capacity:
12-18 boxes/min
Slide Strokes Per Minute:
100-140 times/min
Wire band width:
100-130mm
Wire band thickness:
0.35-0.45mm
Overall Dimension:
1170*1345*1700
motor:
5.5kw
weight:
1800kg
Product Certification certification
CE Certified.
Valid from 2019-03-15 until 2024-03-14
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Polywood case
Port
Tianjin
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 45 To be negotiated
Product Description

24/6 office staples making and packaging machine

This machine has abandoned the traditional heavy-duty punching machine, adopts the hydraulic system as the execution component,
and uses the centralized control of the PLC microcomputer.

A. Suitable for 24/6, 26/6, B8, 10 series staple pins
B. Hydraulic pressure system is adopted in this machine instead of traditional heavy punching type.
C. PLC microcomputer centralized control
D. Advantages: High speed Safety operation Stable performance Low noise
E. With 150 wires wire band, 3 strips can be prodcued every stroke.

24/6 office staples making and packaging machine
Technical Data
Specifications
Unit
SSS-TJB-WJ25
SSS-TJB-WJ25
(24/6)
(26/6)
Nominal Pressure
KN
250
250
Number of strokes
Times/min
100-140
100-150
Wire band width
mm
100-130
100-130
Wire band thickness
mm
0.35-0.45
0.35-0.45
Capacity
Boxes/min
12-18
4-7
Dimensions(L*W*H)
mm
1345*1170*1700
1345*1170*1700
Motor
Kw
5.5
5.5
Weight
Kg
1400
1400
Related Machines

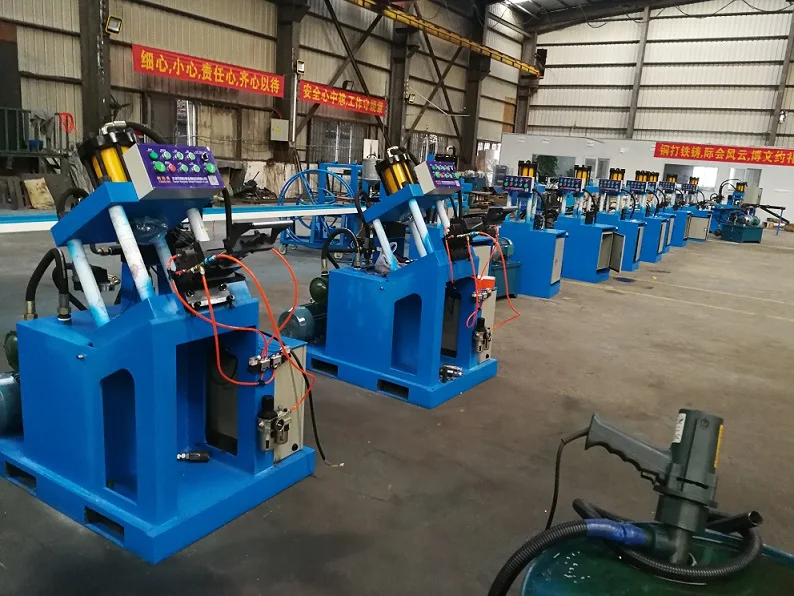

Staple forming machine
To press and form the wire band to the final product staples/staple pins
This machine has abandoned the traditional heavy punch press, adopting the hydraulic system as the executive part, utilizing the PLC system, which has the characteristics of safe operation, stable performance, low noise and so on. Compared with the traditional punch machine, the speed is greatly increased.
Specifications
Unit
SSS-U25
SSS-U60
Nominal Pressure
KN
250
630
Slide Strokes Per Minute
times/min
90-170
80-100
Wire band width
mm
60-120
60-130
Wire band thickness
mm
0.4-0.7
1.0-1.35
Dimensions L*W*H
mm
1300*1200*1550
1300*1250*1650
Motor
Kw
4
5.5
Weight
Kg
1500
1700

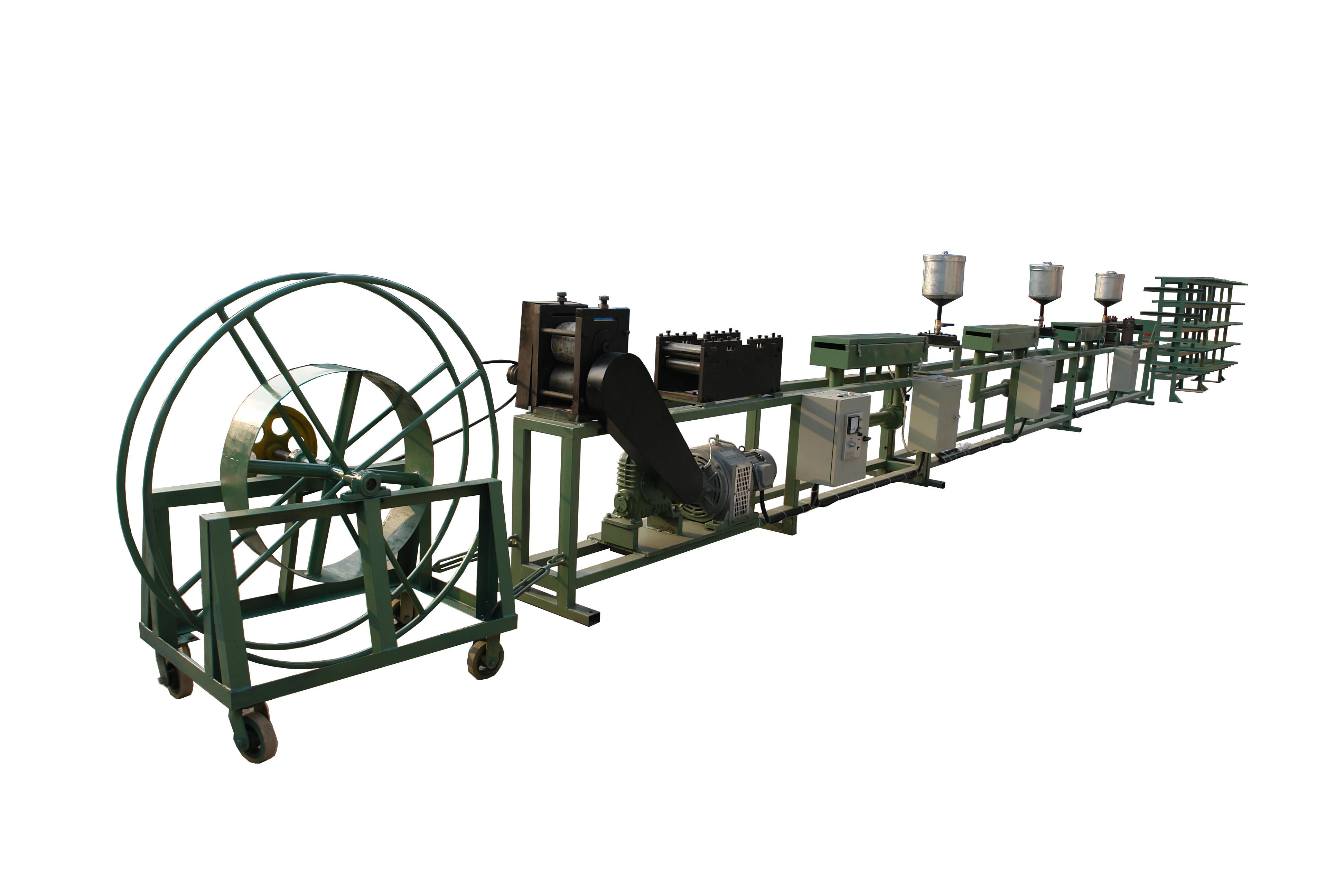

Wire band gluing machine
This group of machines including wire pay-off frame, with leveling and straightening equipment at front and rear part of the production line. The production line can glue the wires automatically and dry the wire band automatically.
Specifications
Unit
Model SSS-BXJ-JX150
Speed
m/min
0-13
Wire band width
mm
50-120
Wire band thickness
mm
0.35-1.85
Dimensions(L*W*H)
mm
2800*1500*1700
Motor
Kw
3+9
Weight
Kg
1100
Wire flattening machine.
This single wire flattening machine adopts tungsten carbide alloy pressing roller, which has the advantages of high hardness and good brightness of the surface of the pressing wheel, and stepless speed change. Water cooling in the pressing roller effectively extends the life of the alloy roller.
Specifications
Unit
Model SSS-YB150
Model SSS-YB200
Model SSS-YB300
Speed
m/min
0-350
0-350
0-350
Wire thickness
mm
0.3-1.0
0.5-1.5
1.0-2.2
Thickness tolerance
mm
±0.01
±0.01
±0.01
Dimensions(L*W*H)
mm
1800*760*1280
1800*760*1280
2000*800*1350
Motor
Kw
3
3
5.5
Weight
Kg
460
475
530
Water tank wire drawing and flattening integrated machine
High speed water tank wire drawing and flattening integrated machine adopts 17 molds and 4 groups of cone type pulley wheels, all wheels with tungsten carbide coating. The flattening machine adopts tungsten carbide wheel with high hardness and shining surface, which can ensure the exact flattening thickness. This group of machines can work together smoothly like one machine with one starting button. Maximum in-let wire diameter: 2.0mm Minimum out-let wire diameter: 0.43mm
Specifications
Unit
Model SSS-LB150
Model SSS-LB350
Speed
m/min
≤1000
≤1000
Inlet wire dia. range
mm
2.0-1.8
3.8-3.6
Outlet wire dia. Range
mm
0.55-0.43
1.5-1.15
Thickness tolerance
mm
±0.01
±0.01
Dimensions(L*W*H)
mm
6000*1500*1800
3000*1600*1800
Motor
Kw
22
40
Weight
Kg
3500
3800

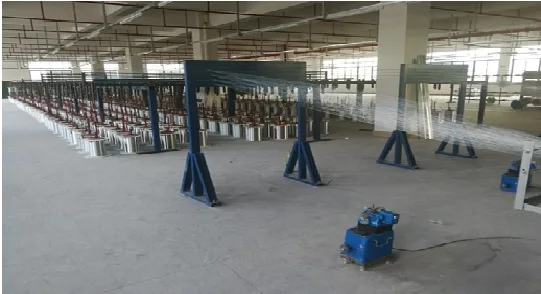

210-spool pay-off  SSS-JX210
Straighten each wire through the wire take-up spool. Each wire is equipped with a pulley cycloid device, and the pulley cycloid device sends the wire to the straightening wheel in the order of the wire. The bent wire will be automatically straightened by the straightening wheel to meet the qualified requirements.
Advantages: Each wire gets the same pulling force Even thickness Smooth wire band
Specifications
Unit
SSS-TJB-JX210
Working speed
m/min
0-13
Wire band width
mm
50-120
Wire band thickness
mm
0.35-0.45
Dimensions (L*W*H)
mm
42000*1500*1700
Motor
Kw
7.5+4+9
Weight
Kg
3800

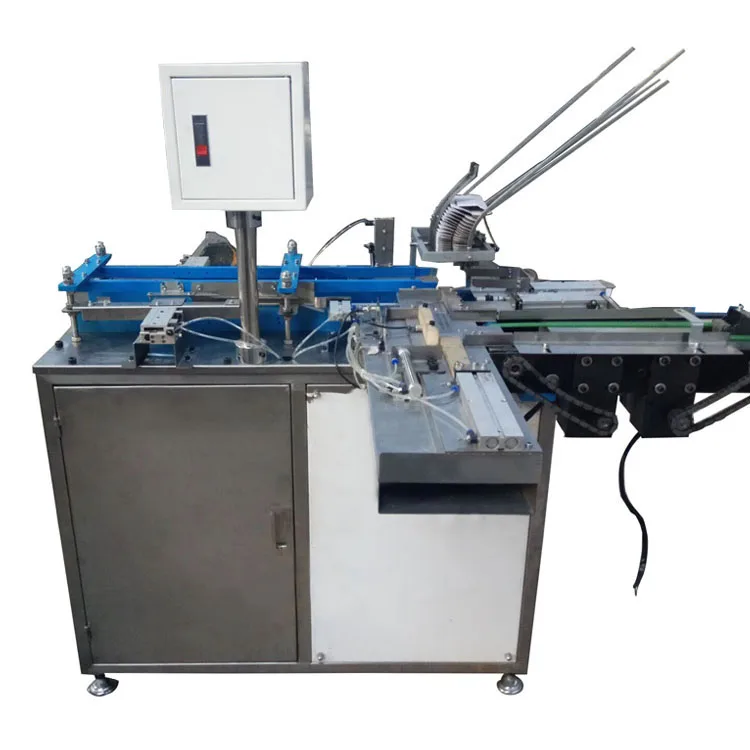

Automatic staple packaging machine
Power of main motor: 80W
Max. Designed capacity: 40 boxes/min
Machine dimension: 1.2×1.1×1.5m(L×W×H)
Machine weight: about 150Kg
Size of carton: max. 125×45×30mm(L×W×H)
min. 120×20×15mm (L×W×H)
Noise:less than 85 db
Technical parameters
Unit
SSS-BZJ-OS
Packing speed
boxes/min
1-18
Weight of a box
g
5-20
Dimension of box
mm
(100~120)x(30~65)x(20~40)
Weight of machine
kg
120
Dimension of machine
mm
1300x1100x1300
Air consumption:
L
3-10
Vacuum suction
Mpa
0.5-0.8
Packing & Delivery
